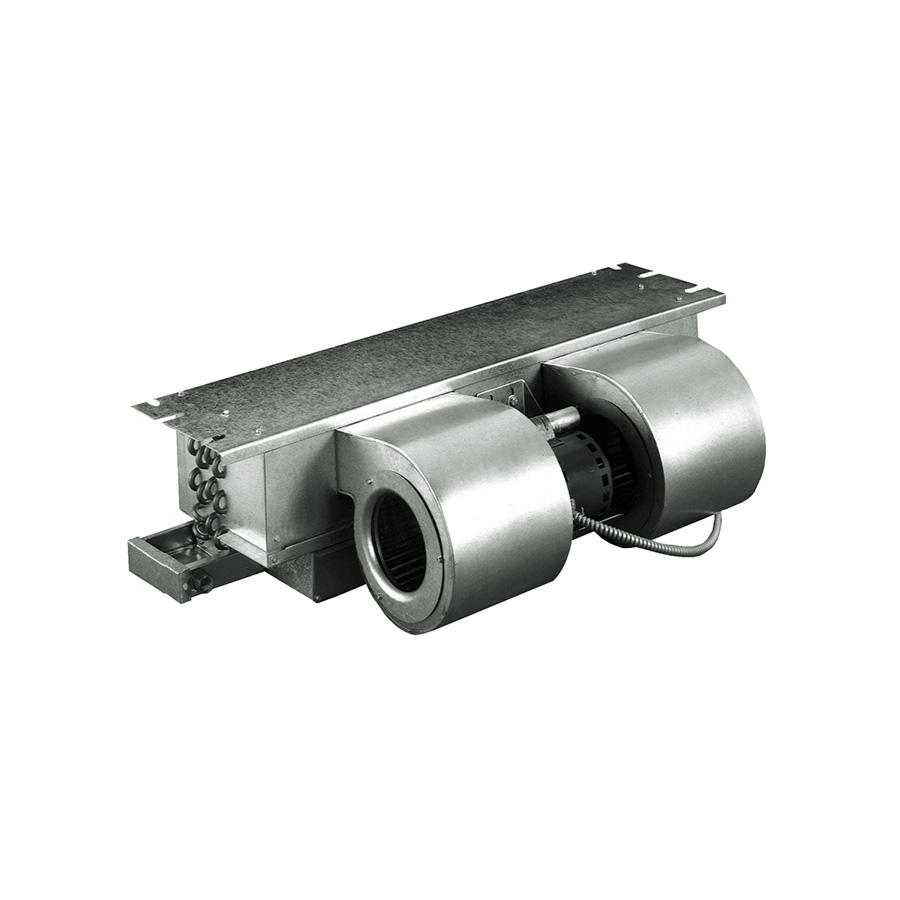

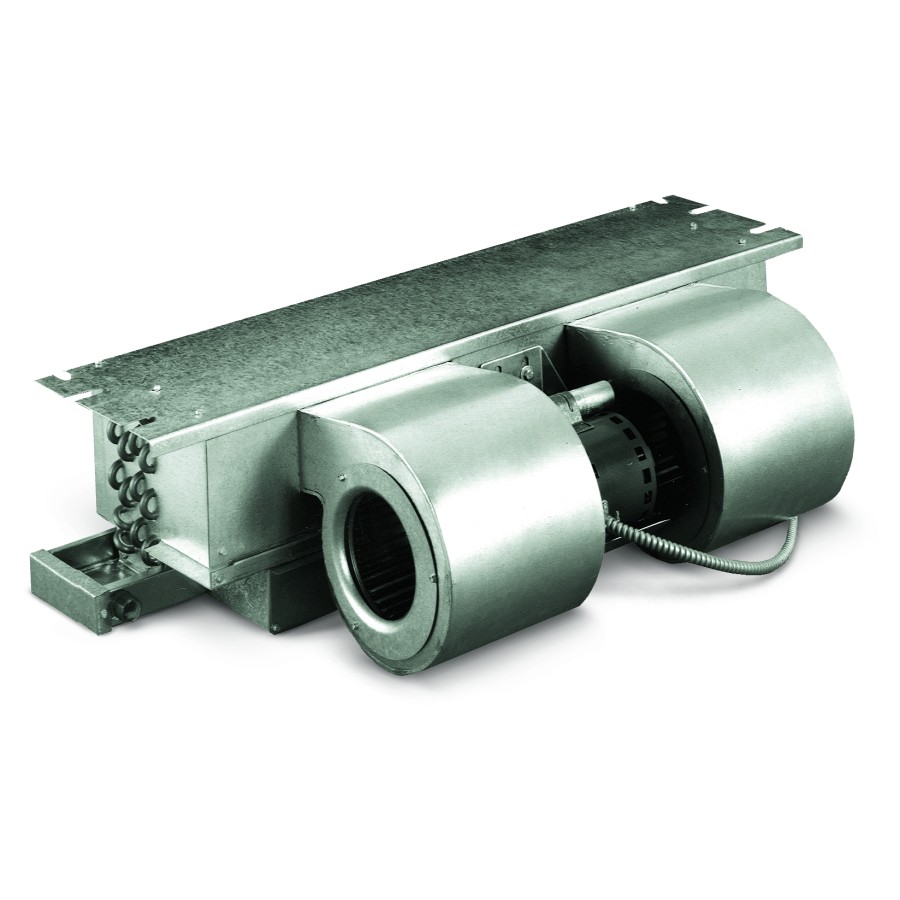

Ceiling Mount Fan Coil 24000 Cooling Btu 8 kW Heat

212330
  • Amps: 35.3
  • Btu Cool: 30000
  • CFM: 1000
  • Piston Size: 0.059
  • Additional Product Information
  • Volume 141 Catalog Page: 107
  • 24,000 cooling Btu and factory installed 5kW electric heat
  • Uncased for use with Heat Pump or DX with electric heat
  • Heat pump w/heat requires kit # 942-1
  • Shipped setup for R22 needs field-installed TXV for R410A
  • Sloped & insulated drain pan w/primary and secondary drains
  • Copper tube coils
  • 240V motor and 24V controls
  • 56-1/4"W x 21"D x 10"H - 95 lbs
  • Additional freight charges will apply for shipments outside our local delivery areas
  • 28HX8
